THE HEADER POWER BRACKET

Introducing a new solution to mounting your alternator on vintage small block Chevrolets with headers.  The Header Power Bracket provides a clean and simple design, adding strength and closer tolerances for a better fit than other brackets on the market.

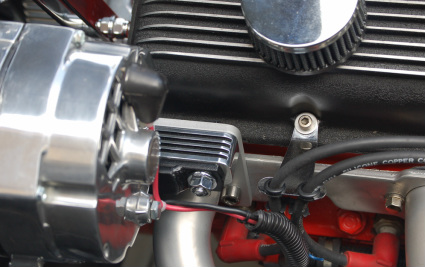

Standard Left-Side Bracket with Polished Ribbed Spacer (Alternator in-place)

STRENGTH AND STABILITY

Made of 1/4" AMERICAN STEEL, the Header Power Bracket is precision CNC cut on a plasma machine.  The brackets' design and increased strength eliminate flex and the associated accessory tweaking and belt squealing.  Used without a spacer, the bracket "close mounts" the alternator toward the centerline of the car, reducing polar movement and allowing for use of a shorter belt, reducing whipping.

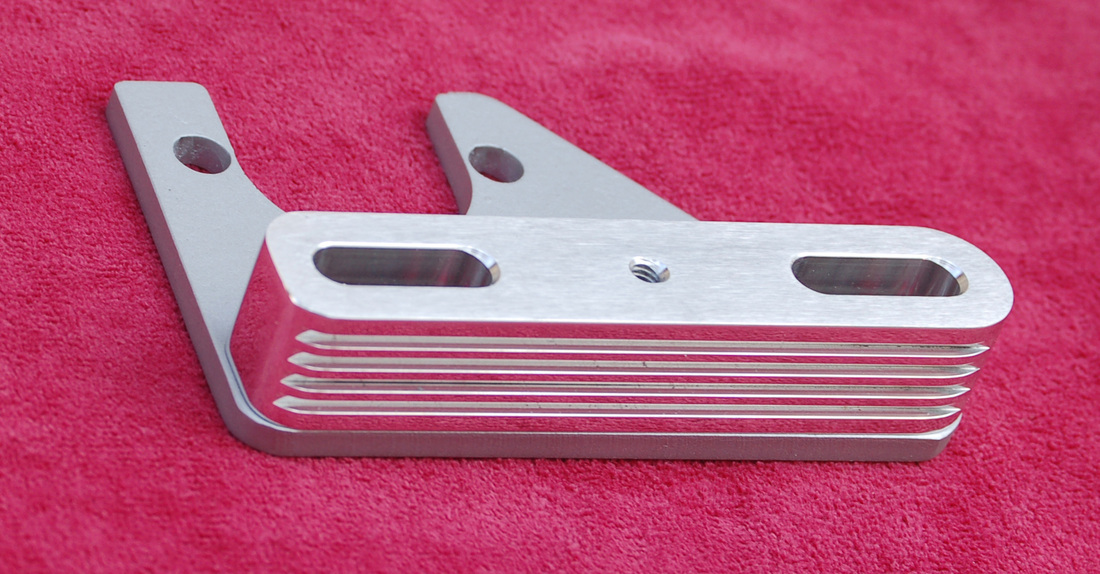

Left Side Bracket with Polished Ribbed Spacer

Extended Right-Side Bracket with Satin Smooth Spacer

DESIGN OPTIONS

In addition to both left (driver) and right (passenger) standard brackets, both left and right extended brackets are available that allow for their installation using the #1 and #3 bolt holes, eliminating the difficulty of getting that "tricky" second bolt in-place.

Three styles of billet aluminium spacers, both in satin and polished finishes, are also offered.  These work in conjunction with any of the brackets and are available in smooth, ball-milled, and ribbed finishes.

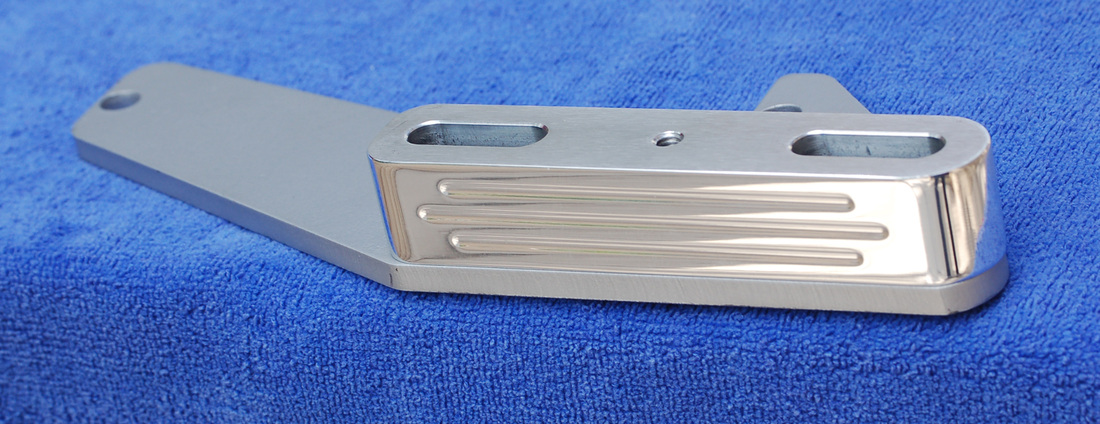

Extended Left Side Bracket with Polished Ball-Milled Spacer

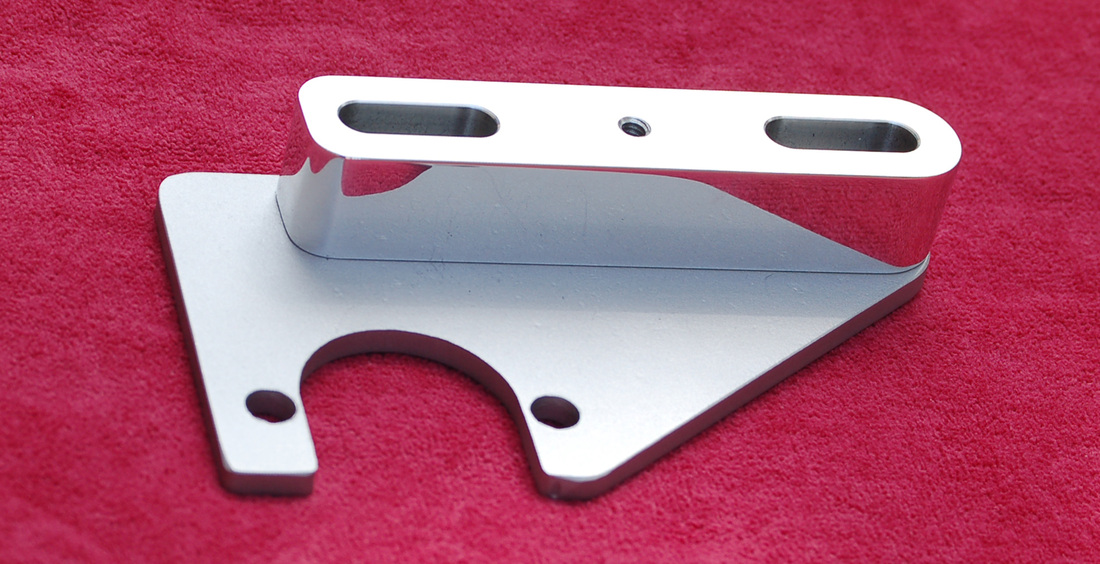

Right Side Bracket with Polished Smooth Spacer (viewed from underside)
